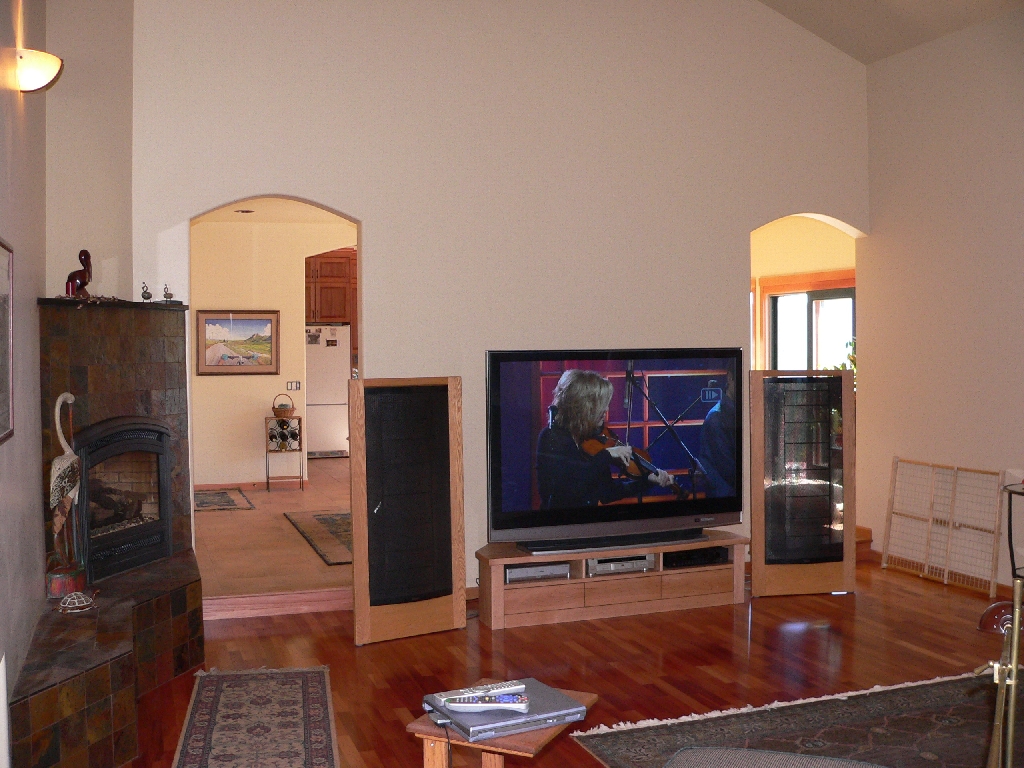

Qualia with Martin-Logans. Open design reduces reflections from the Electrostats and room echo. Jeff built the stand.
Added shelf for center speaker
Rear of room with lowered external shades.
Opening for Sub. Speaker shown is temporary while a dual sub cabinet is constructed.
The new enclosure. Two JBL 2245s in a 32' cabinet.
Construction is 1.5" MDF from two .75" MDF. Second layer is not yet contructed.
Port is tuned to 25 Hz.
32 cubic feet, two JBL 2245s, tuned to 25Hz
Second layer of .75" MDF will be applied after it's moved
Unusual port shape was required to maximize mouth area in the limited opening.
The stand was built by Jeff King (JeffKing@HandCraftedWoodworks.com)
